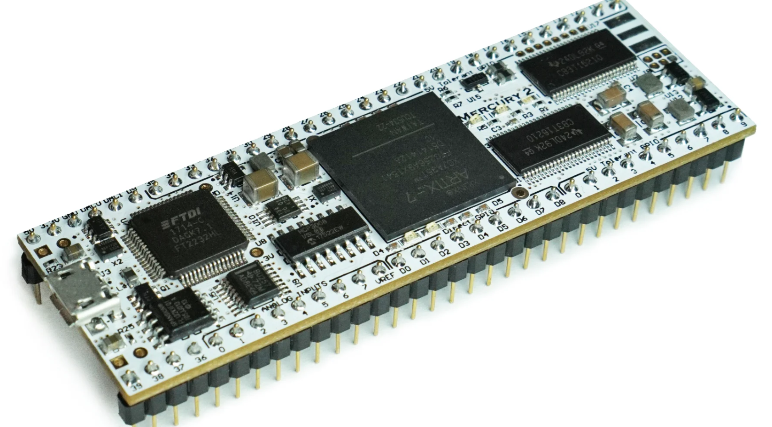

Mercury 2 FPGA Development Board

Check out the all new Mercury 2 FPGA dev board! It packs some serious power into a small 1-inch by 3-inch platform:

  • Xilinx Artix-7A FPGA (XC7A35T - XC7A100T)

  • Dual-channel High Speed USB 2.0 interface

  • 50MHz precision MEMS oscillator

  • 40 5-volt tolerant I/O pins, 10 FPGA direct I/O pins

  • 8-channel, 200 KSPS, 10-bit ADC

  • 2-channel, 220 KSPS, 10-bit DAC

  • 32 Mbit SPI Flash for configuration & user data

  • Fast 10ns 4Mbit or 16Mbit SRAM

  • LAN8720A 10/100 Ethernet PHY

  • SMA connector for 1 MSPS, 12-bit Xilinx XADC

  • Expansion headers for Ethernet and Wi-Fi

  • Designed and assembled in the United States
