Mercury Baseboard

$39 USD

Available now at the MicroNova Store and Tindie.com

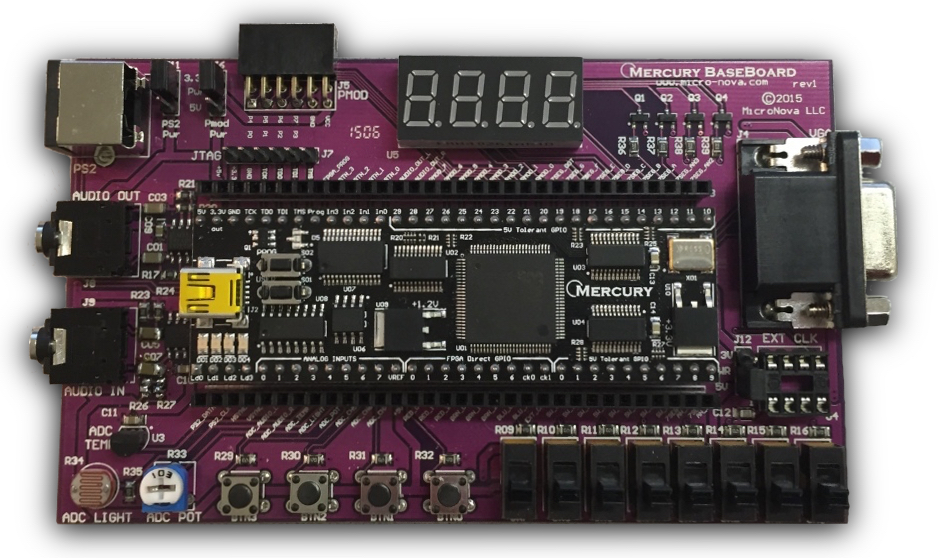

The Mercury Baseboard is the perfect companion for your Mercury FPGA development board! Your Mercury board docks right into the 64-pin DIP socket, adding a plethora of useful peripherals:

  • 4-digit seven-segment display

  • 4 pushbuttons & 8 toggle switches

  • PS/2 port for keyboard or mouse

  • VGA port supporting 8-bit color

  • 1 double Pmod-compatible connector

  • 3.5mm stereo audio-out port & support circuitry for 1-bit delta-sigma DAC

  • 3.5mm stereo audio-in port & support circuitry for use with Mercury's ADC

  • Analog temperature sensor, light sensor and potentiometer for use with Mercury's ADC

  • Socket for additional crystal oscillator

  • JTAG pin header

(Mercury FPGA module sold separately.)
